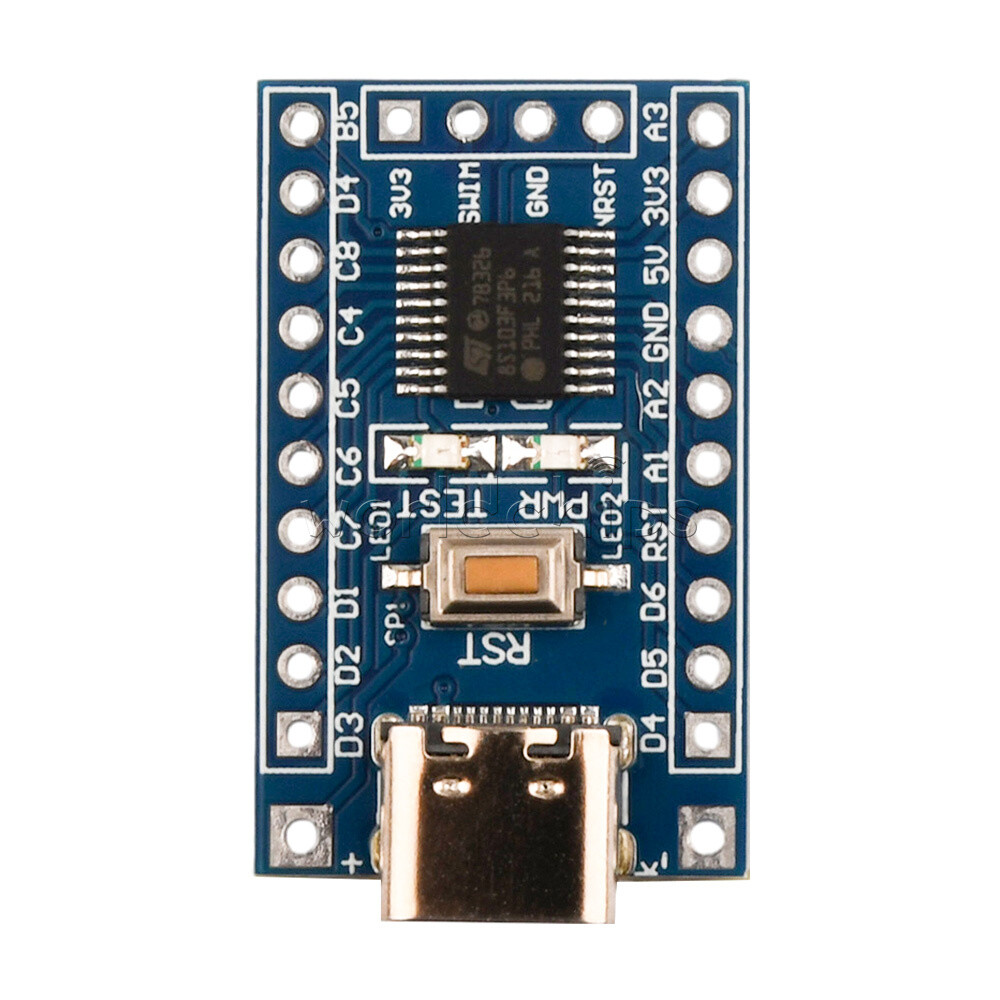

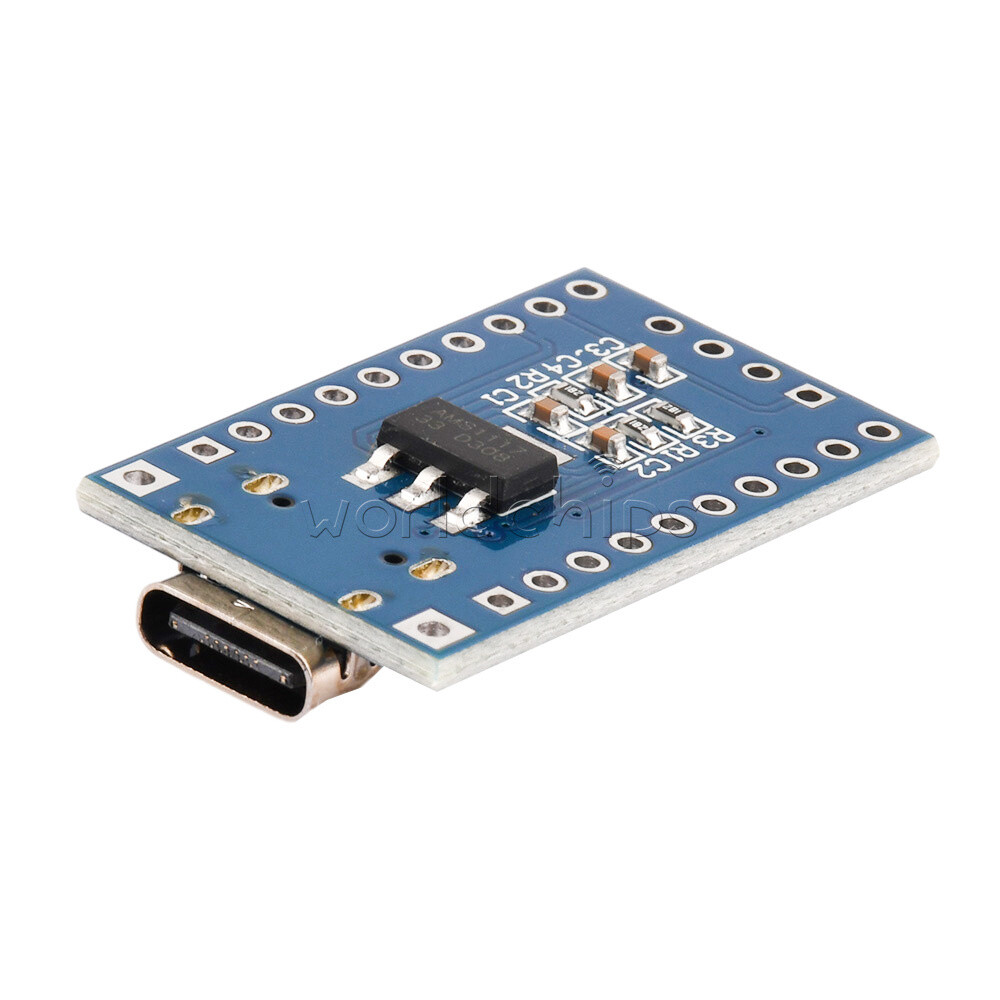

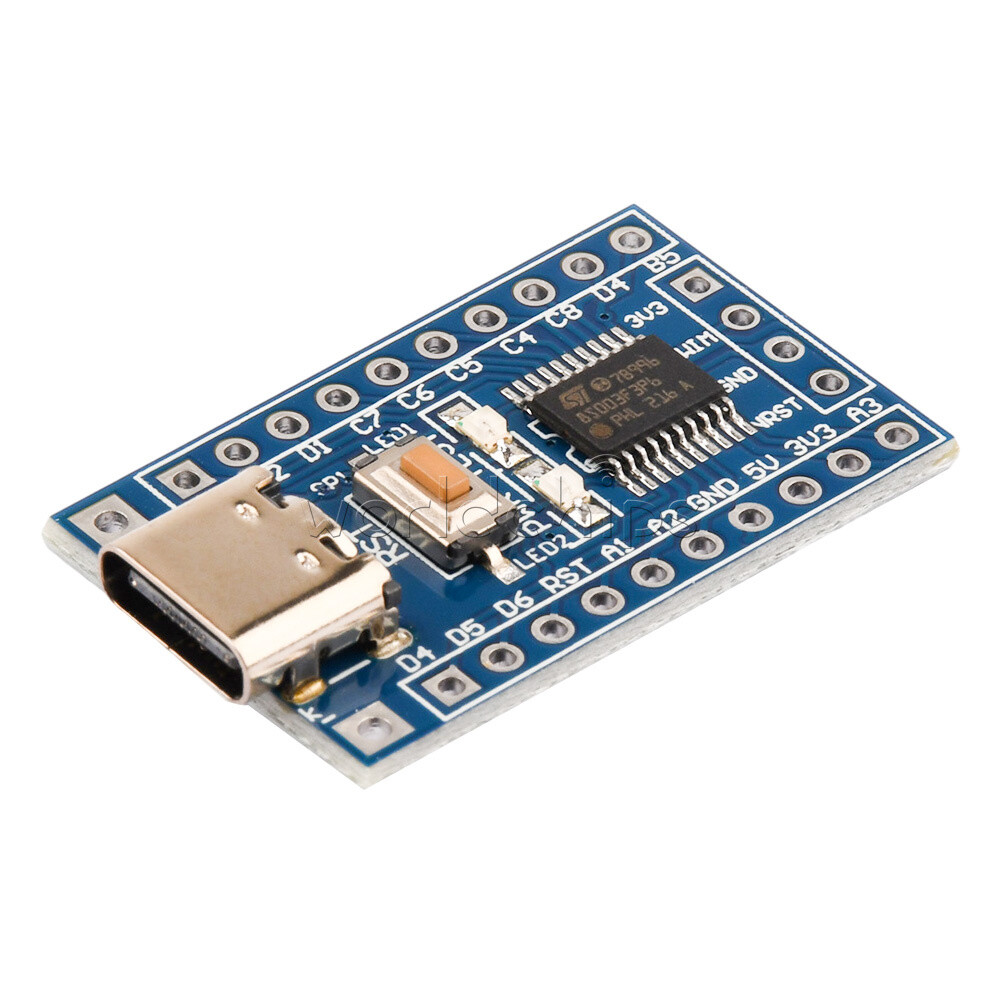

STM8S103F3P6/STM8S003F3P6 STM8 ARM Minimum System Development Board Core Board
$ 8.34
Description
STM8S103F3P6/STM8S003F3P6 STM8 ARM Minimum System Development Board Core Board. STM8 Application Cases. The schematic diagram of the core board (in PDF format) and the test source program. Burn in the test program, and the LED light flashes after power on, so that you can check whether the core board works normally. Home Arduino Module Sensor Chips About Us Features: 1.Use STM8S103F3P6 as the main control IC, with stable performance; 2.You can use the 2.54 pins on the board to power up or the solder pad to power up. When using the solder pad to power up, the input voltage range is 4.5V-15V, and 3.3V can be output to the outside through the pins simultaneously; 3.Lead out all pins, with the pin label marked next to them, equipped with a reset button, power indicator light, and program demonstration indicator light. Although the sparrow is small, it has all five internal organs; 4.Support SWIM debugging method, easy to use; 5.This development board adopts TYPE-C USB power supply, which is compatible with smartphone data cables. The data cable is simple and easy to obtain, rather than USB MINI cable power supply. This is an important feature that distinguishes this module from other home products. Parameters: Input voltage range: 4.5V-15V Output: 3.3V (note: the 5V pin is connected to the input power supply of the module) Interface: TYPE-C Size: 30 * 18.5mm Product Description: 1. The schematic diagram of the core board (in PDF format) and the test source program. Burn in the test program, and the LED light flashes after power on, so that you can check whether the core board works normally. 2. Provide two sets of supporting I/O port routines, timer routines, UART sending routines, UART receiving routines, clock switching routines, and AD routines for register operation and library function operation in both IAR and STVD development environments. 3. STM8 Application Cases 4. STM8 Packaging Library 5. Register programming for various functional modules of STM8 6. IAR development environment and STVP burning software Technical data download link: STM8 series program information: http://pan.baidu.com/s/1gdAaJDp STM8 software tool IAR+STVP: http://pan.baidu.com/s/1qWuPtQc STM8 Other Information: http://pan.baidu.com/s/1o6p3K1c Package include: 1X development board Payment Shipping Refund Payment We accept PayPal only. But we only Accept your Ebay Address ,Please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Fill your shipping info Refund All package need to wait 30 days (US only n eed 7-10 days) ,Please take care it.Less than 30 days,we can't take a refund. If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
