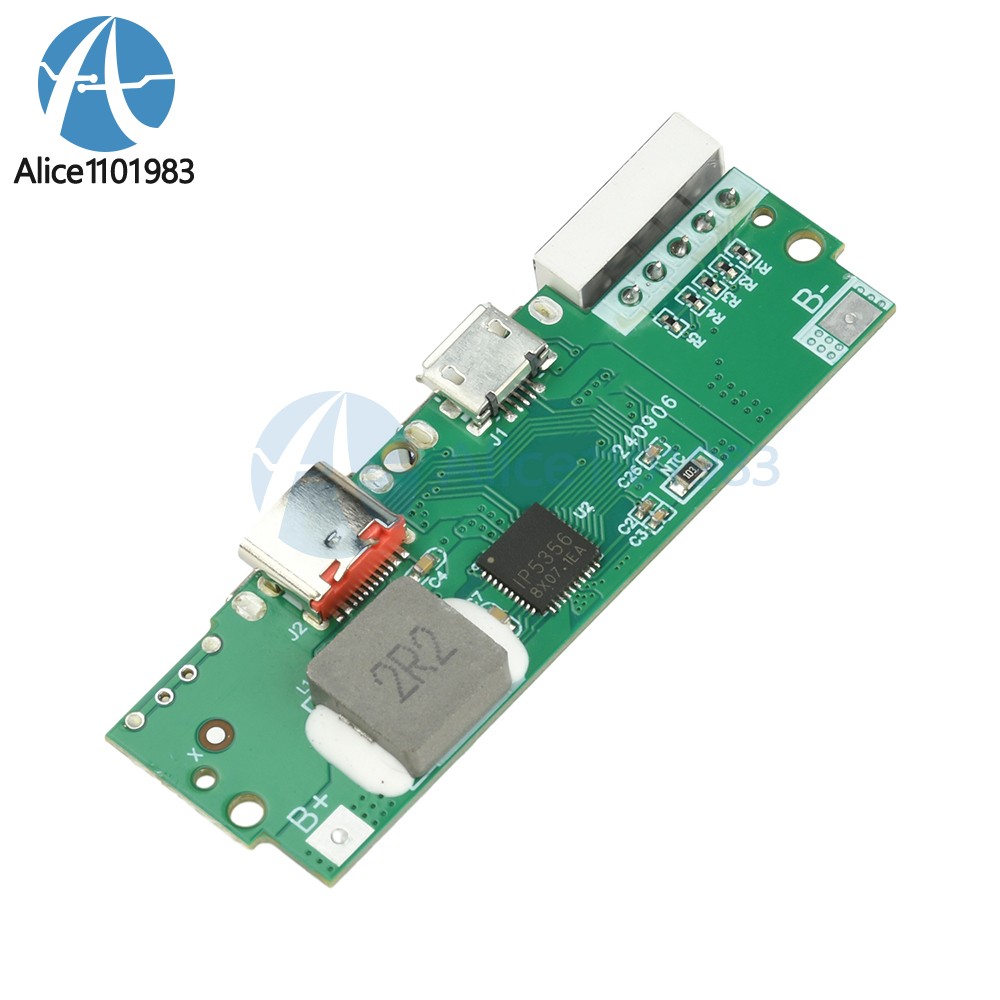

PD/QC 22.5W Fast Charging Module DIY Mobile Power Bank Circuit Board LED Display
$ 2.66
Description
PD/QC 22.5W Fast Charging Module DIY Mobile Power Bank Circuit Board LED Display. Protocols: PD, QC, Apple, FCP, SCP, VOOC, etc. Regarding motherboard heating during charging: When the power bank operates, current flows through the motherboard and chip, causing energy conversion losses. Visit store Items for sale About us Product Details Features: 1. Supports PD/QC/VOOC multi-protocol fast charging, compatible with mainstream device charging needs 2. 22.5W super-fast charging output, significantly boosts charging speed to save waiting time 3. Multiple interface design: Type C + USB + Micro USB, supports simultaneous charging of multiple devices 4. Built-in multi-protection mechanisms: comprehensive safety safeguards against overvoltage, overheating, and overcharging/discharging 5. High conversion efficiency circuit design minimizes power loss for stable and efficient charging Parameter: Product Name: 22.5W Fast Charging Module Fast Charge Chip: IP5356 Input Parameters: 5V2A/5V3A/9V2.2A/12V1.6A Output Parameters: 5V2A/5V3A/9V2.2A/12V1.6A/10V2.25A Interfaces: 1 Type-C port + 2 USB ports + 1 Micro USB port Protocols: PD, QC, Apple, FCP, SCP, VOOC, etc. Display: LED display Features: Comprehensive motherboard protection including overcharge/over-discharge/overvoltage/overheat safeguards. High conversion efficiency with stable current and voltage output. Note: 22.5W supports VOOC Flash Charge protocol. Bidirectional fast charging operates at PD 20W protocol. Simultaneous multi-port output does not support fast charging. Assembly Instructions: 1. Upon receiving the mainboard, first connect the charging cable for input testing. Observe the display status and confirm the screen illuminates before proceeding with soldering. 2. For normal operation, the battery wires must be soldered directly. Connections via wire twists, alligator clips, or spring clips may cause insufficient power supply, affecting charging/discharging. Ensure proper insulation protection for the battery terminals to prevent accidental contact with the mainboard during use, which could cause damage. 3. Connect the battery positive terminal to the B+ pin on the mainboard and the negative terminal to the B- pin. Do not reverse polarity. Reversal will burn the mainboard; burnt ICs will show visible traces. This damage occurs only from reverse connection or accidental contact. 4. Use 3.7V ternary lithium batteries only. Lithium iron phosphate batteries are not compatible. Connect batteries in parallel, not series. Series connection creates excessive voltage that will burn the mainboard. 5. The mainboard incorporates built-in protection. Soldered batteries require no additional protection board. Battery protection boards impose current limits; exceeding these limits will cause output disconnection. Usage Instructions: 1. Regarding activating fast charging for phones: Phone fast charging protocols are categorized as public or proprietary. This motherboard employs an intelligent fast-charging chip compatible with mainstream public fast-charging protocols, supporting rapid charging for various phone brands. Before ordering, confirm your phone supports public protocols to ensure fast charging functionality. 2. Regarding motherboard heating during charging: When the power bank operates, current flows through the motherboard and chip, causing energy conversion losses. These losses dissipate as heat. During fast charging, higher power output results in more noticeable heating—this is a normal physical phenomenon. 3. Battery level display may be inaccurate immediately after connecting the battery. The battery meter supports self-learning of battery capacity and will display accurately after several charge/discharge cycles. Package include: Module x1 Cable x2 Payment Method Shipping Policy Returns & Refund Policy Feedback Payment Method EBAY Managed Payment. But we only Accept your Ebay Address , please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Returns & Refund Policy All package need to wait 30 days (US only n eed 7-10 days) ,Please take care it.Less than 30 days,we can't take a refund. If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
