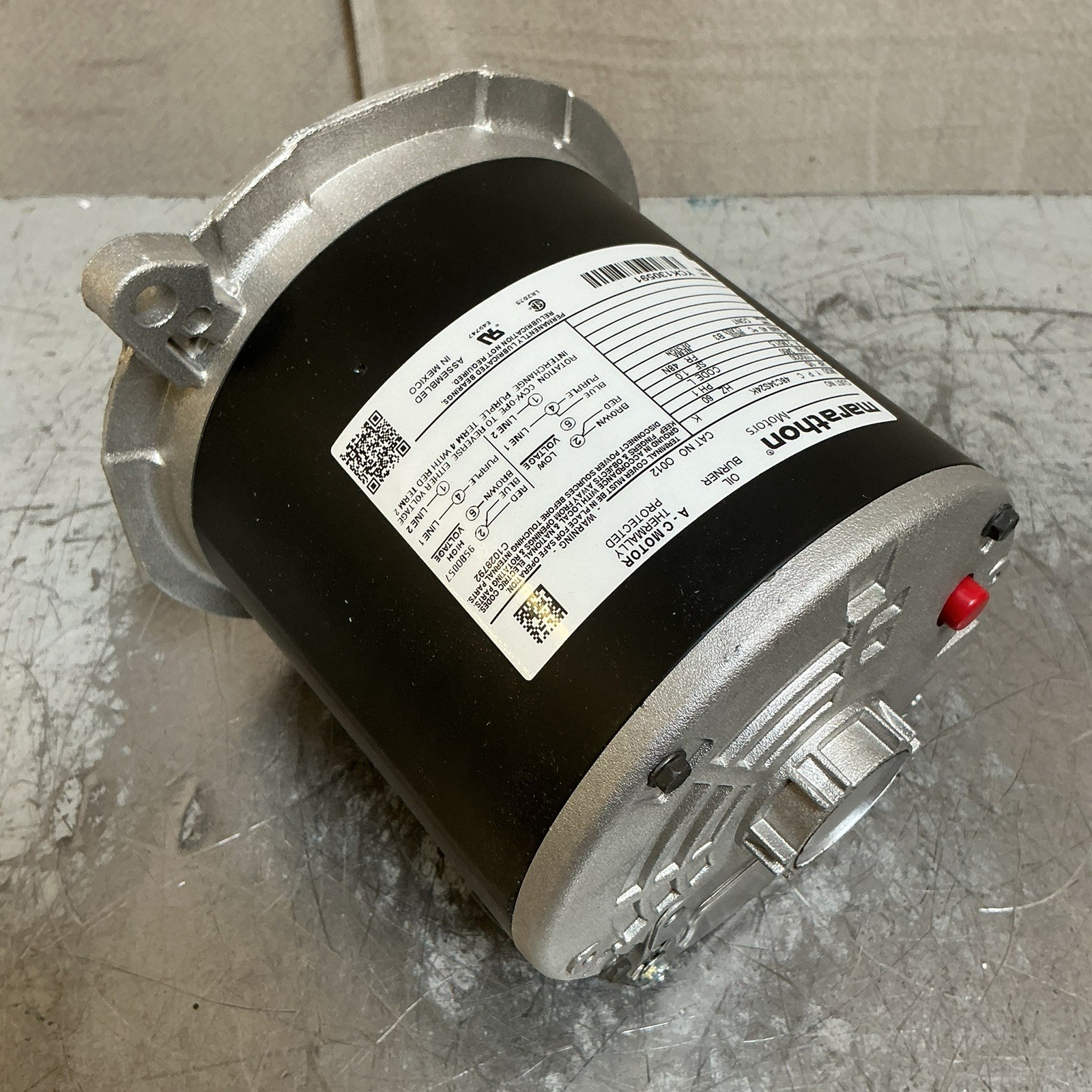

MARATHON 048C34S24 Oil Burner Motor 1/5hp 3450rpm 115/230V
$ 66.0
Description
MARATHON 048C34S24 Oil Burner Motor 1/5hp 3450rpm 115/230V. Motor Design. Motor Enclosure Type. Motor Thermal Protection. Motor Shaft Rotation. Lead Length. Oil BurnerMotor. Overall Length. Product Type. I am offering a new MARATHON 048C34S24 Oil Burner Motor 1/5hp 3450rpm 115/230V This is listed as New(‘Other’) because the original packaging was damaged, resulting in some minor scuffs and scratches. Otherwise it is new and in excellent condition. Please review all images! Specs: BrandLEESON Manufacturer Part Number048C34S24 PhaseSingle Mounting TypeFlange Motor DesignCapacitor-Start Nameplate Horsepower @ 60 Hz1/5 hp Nameplate RPM @ 60 Hz3,450 RPM Frame Size48N Body Diameter6.8 in Nameplate Voltage @ 60 Hz115/230V AC Full Load Amps @ 60 Hz3.0/1.5 A Motor Enclosure TypeOpen Drip Proof Motor Thermal ProtectionManual Nameplate Service Factor @ 60 Hz1 Shaft Diameter1/2 in Shaft Length1-3/4 in Motor Shaft RotationCW/CCW Number of Speeds1 Usable @ 208VUsable at 208V Overall Length8-3/8 in Lead Length10 in Ambient Temperature - Maximum40 °C Insulation ClassB Mounting PositionHorizontal Shaft DesignFlat Flange TypeVentilated Frame MaterialSteel Usable @ 200VUsable at 200V Frequency60 Hz ApplicationOil Burner Sub ApplicationOil Burner Capacitor RequiredCapacitor Included Conduit Box LocationExterior Conduit Box PositionF1 Length Less Shaft6-5/8 in Nominal Efficiency61 % Wattage150 W StandardsCSA Certified; UL Recognized Weight14 lb Bearing TypeBall DutyContinuous Product TypeOil Burner Motor UNSPSC26101602 Country of OriginMexico (subject to change) Thanks for looking, your satisfaction is guaranteed. *** FREE LOCAL PICKUP available in Carlsbad, CA. Open Mon-Fri, 9am-3pm. *** Location: 2-D-2
