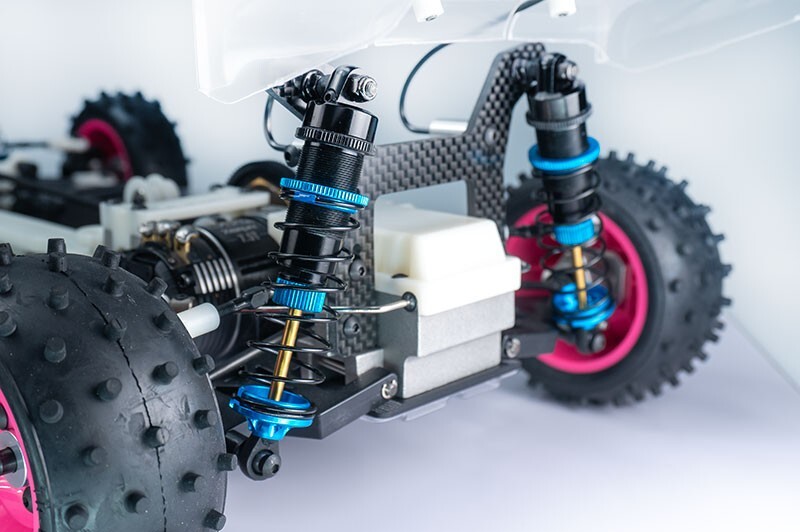

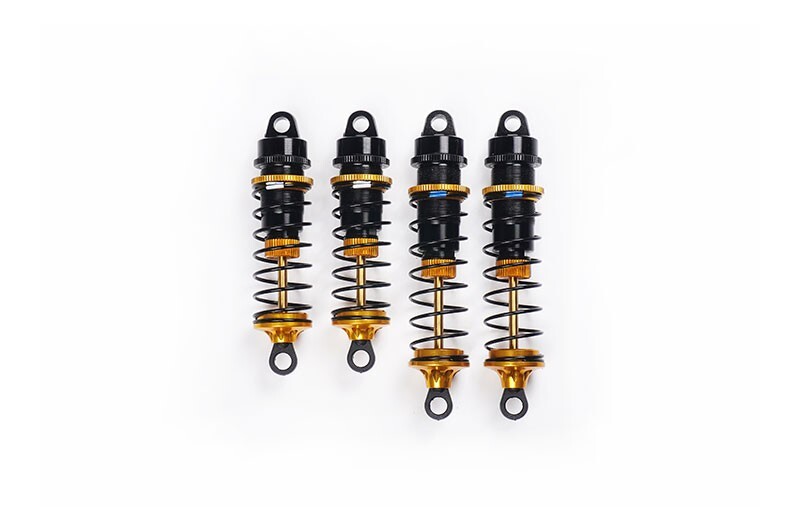

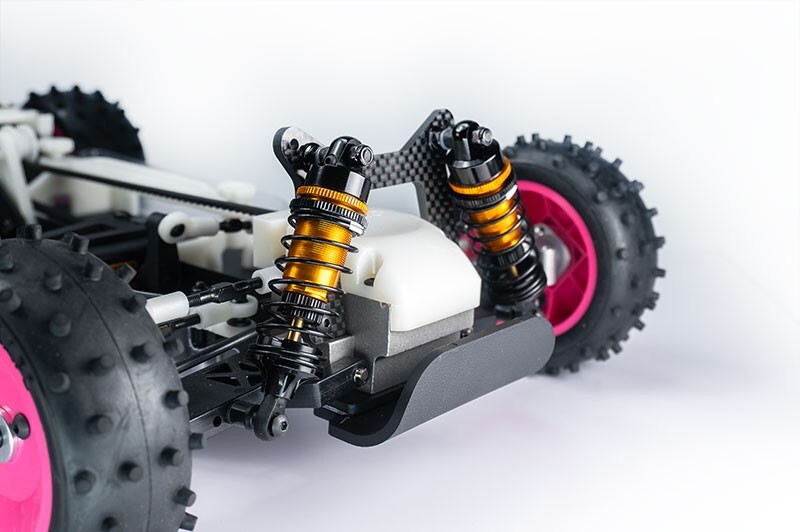

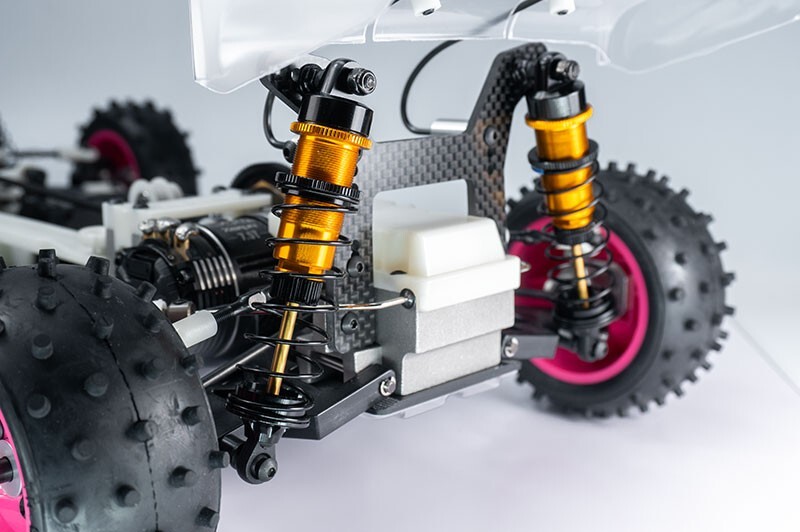

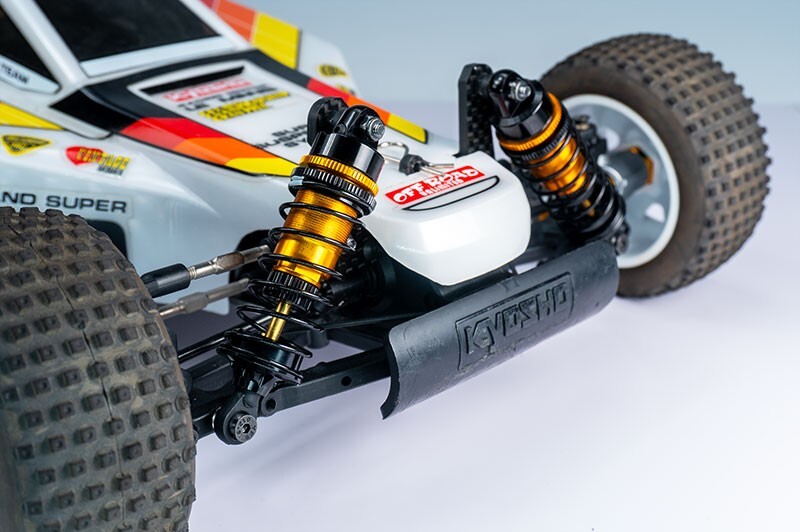

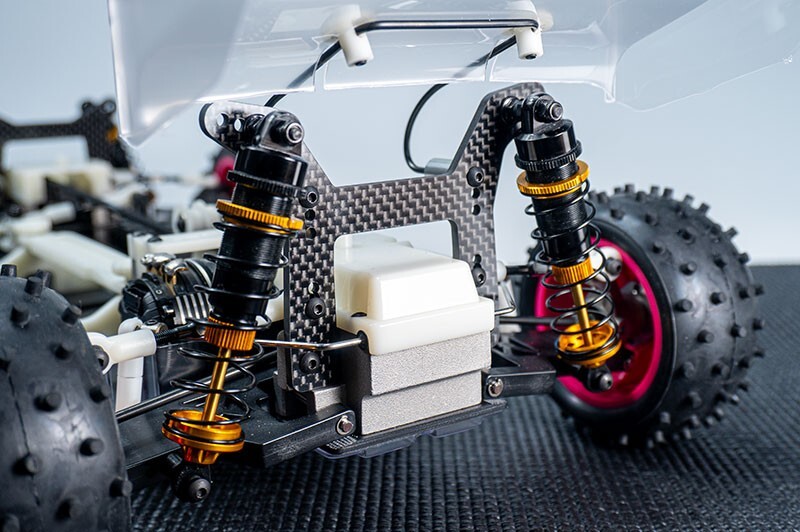

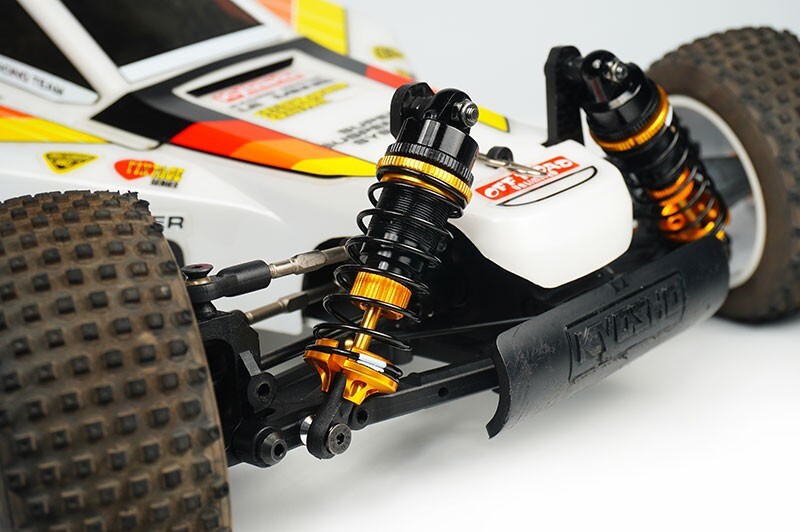

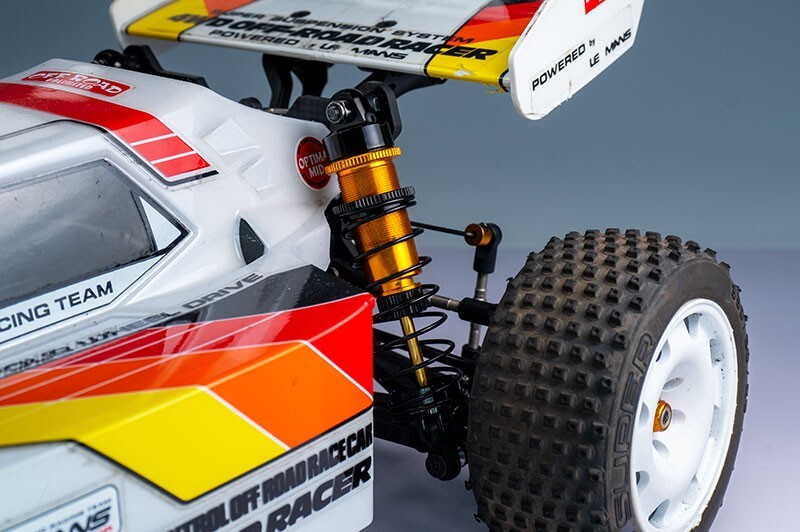

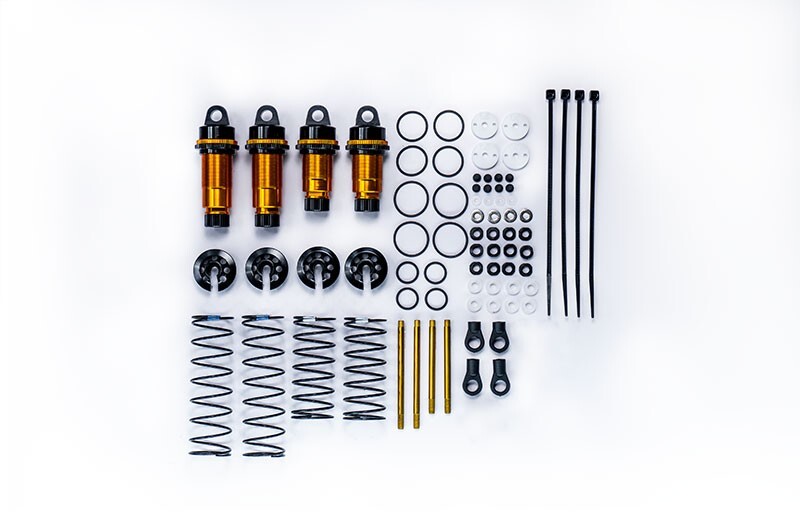

Koswork 12mm Big Bore Buggy Shock Set & Parts (Kyosho, Tamiya & Yokomo) KOS04901. Pro2 RT10SW. Pro2 LT10SW. Pro2 DK10SW. XB2 2019 Carpet. Made In Taiwan. SR10M Dirt Oval. SC10.3 Lucas Oil. SC10.3 JRT. If you DO NOT require a signature for delivery, please tell us when you send the order. Thanks. If the parcel is returned due to no authorized recipient to sign for the delivery, we will be forced to collect the re-send shipping cost from you. Thanks for your understanding and sorry for the inconvenience. For combined shipping or other shipping services, please check the main store. Kyosho 5.8mm Hard Anodized 7075 Flanged Pivot Ball (4) smooth KOS04311 INTRODUCTION SPECIFICATION Features: *Lightweight aluminum 7075 material*Hard coated surface*Smooth suspension*Weight-saving*Fits cars with 5.8mm pivot balls*Upgrade parts for most Kyosho cars with W0201 5.8mm ball & UT017 washer*Excellent for Koswork 12mm shocks *Made In Taiwan *Cars, parts, accessories & others are not included.* Kyosho 5.8mm Hard Anodized 7075 Pivot Ball (4) lightweight KOS04313 INTRODUCTION SPECIFICATION Features: *Lightweight aluminum 7075 material*Hard coated surface*Smooth suspension*Weight-saving*Fits cars with 5.8mm pivot balls*Upgrade parts for Kyosho most cars with W0201 5.8mm steel balls*Excellent for Koswork 12mm shocks *Made In Taiwan *Cars, parts, accessories & others are not included.* 12mm Big Bore Buggy Shock Set (F & R) (Kyosho, Tamiya & Yokomo) must have KOS04901 12mm Gold Body Black Big Bore Buggy Shock Set (F & R) (Kyosho, Tamiya & Yokomo)KOS04901TA 12mm Blue Big Bore Buggy Shock Set (F & R) (Kyosho, Tamiya & Yokomo)KOS04901GD 12mm Gold Big Bore Buggy Shock Set (F & R) (Kyosho, Tamiya & Yokomo) INTRODUCTION SPECIFICATION Features:*Direct replacement & upgrade for Kyosho Optima Mid series, Ultima, Ultima JJ, Optima, Turbo Optima, Javelin & other Kyosho buggy*Direct replacement & upgrade for Tamiya BB-01 BBX & other Tamiya buggy*For Yokomo YZ-870C / Team Associated YZ-10 (Higher shock towers will be needed.)*3 different color combinations available*Big bore shock set with 12mm pistons*Gold color or hard coated black color aluminum shock bodies*Polished inner shock body for slick & friction free performance*CNC machined 12mm pistons, made of self-lubricating material*Ti-Nitride coating shock shafts for long life and smooth action*Aluminum shock caps allow the utmost durability and consistency*Aluminum shock collars & bottom caps with knurled portion for increased grip*Aluminum shock spring retainers/cups provide a solid foundation for the shock springs*Optional springs and pistons available for fine tuning*Experience the benefits of better bump handling, more traction and consistent performance*Similar to the Tamiya Big Bore option shocks 54504 & 54505, but with better performance and value*These shocks are the same as KOS04351-1 & KOS04410, but with one more color. *Made In Taiwan *Cars, parts, accessories & others are not included.* Specification:5mm hole on the top of shock capShock ball ends designed for 5.8mm ballsPiston: Front 2×1.5mm / Rear 2×1.6mmStroke: Front 24mm / Rear 28.8mmSpring: Front 44mm 8.5T White / Rear 61mm 9T BlueOverall length: Front 84.2mm / Rear 99mm Compatibility:Kyosho Optima Mid Series, Ultima & Ultima JJ, Optima, Turbo Optima, Javelin & similar size carsTamiya DT-04 (5mm shock cap bushings, 5.8mm pivot balls, 3x15mm & 3x18mm screws needed)Tamiya BBX, BB-01, TT-02B, TT-02BR, TD4, DB02, DB01, DF-03, DF-02, DN-01, TRF503, TRF502X, TRF211XM, TRF211XMW, TRF201Yokomo YZ-870C / Team Associated YZ-10 For more information, please check the manual below.For Kyosho cars For Tamiya cars For Yokomo cars Parts List:KOS04801-34 34mm Front Alum Shock Body Hard Coated Black for 12mm Shock (2)KOS04801-34GD 34mm Front Alum Shock Body Gold for 12mm Shock (2)KOS04801-41 41mm Rear Alum Shock Body Hard Coated Black for 12mm Shock (2)KOS04801-41GD 41mm Rear Alum Shock Body Gold for 12mm Shock (2)KOS04803 Alum Shock Cap for 12mm Shock Black (2)KOS04805BK Black Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)KOS04805GD Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)KOS04805TA Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2)KOS04806 O-Ring 12x1mm for Shock Cap 12mm Shock (4)KOS04807 Shock Spacer & Hat bushing Set for 12mm ShockKOS04808BK Lower Shock Cap Black (2) 12mm & 13mm Shock AEKOS04808GD Lower Shock Cap Set Gold (2) 12mm & 13mm ShockKOS04808TA Lower Shock Cap Set Blue (2) 12mm & 13mm ShockKOS04809 O-Ring 8x1mm for Lower Shock Cap (4) 12mm & 13mm ShockKOS04811 O-Ring 14x1mm for Threaded Collar 12mm Shock (4)KOS04812BK Threaded Collar w/O-rings Black for 12mm Shock AE Tamiya (2)KOS04812GD Threaded Collar w/O-rings Gold for 12mm Shock (2)KOS04812TA Threaded Collar w/O-rings Blue for 12mm Shock (2)KOS04821 Front Shock Shaft TiN Coated 3×41.25mm (2) 12mm & 13mm ShockKOS04826 Rear Shock Shaft TiN Coated 3×47.75mm (2) 12mm & 13mm ShockKOS04831-215 2×1.5mm Shock Piston, for 12mm shock AE (2)KOS04831-216 2×1.6mm Shock Piston, for 12mm shock AE (2)KOS04841-6 Shock Ball End / Eyelet (for 5.8mm ball) 13.4mm (4)KOS04841-7 Shock Ball End / Eyelet (for 5.8mm ball) 15.9mm (4)KOS04846BK Black Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)KOS04846GD Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)KOS04846TA Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2)KOS04850-8.5T Front Shock Spring White (44mm, 1.2/8.5T, 3.4 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-9T Rear Shock Spring Blue (61mm, 1.1/9T, 2.2 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOSBS204 2x4mm Button Head Hex Hardened Steel Screw (w/container) (8)KOS402506-05 2.6x6x0.5mm 2.5mm Steel Washer / Shim Shiny (8)KOS40204-05NY 2x4x0.5mm 2mm Nylon Washer / Shim White (8)KOS02001 Low Friction X Ring (w/special o-ring grease) (for 3mm shaft) (8pcs) Option Parts:KOSBS315 3x15mm Button Head Hex Hardened Steel Screw (w/container) (8)KOSBS318 3x18mm Button Head Hex Hardened Steel Screw (w/container) (8) KOS04311 Kyosho 5.8mm Hard Anodized 7075 Flanged Pivot Ball (4)KOS04313 Kyosho 5.8mm Hard Anodized 7075 Pivot Ball (4)KOS04804 5mm Shock Cap Bushing for 12mm Shock (4) Black for Koswork, Kyosho & Tamiya KOS04831-217 2×1.7mm Shock Piston, for 12mm shcok (2) KOS04850-9T Front Shock Spring Green (44mm, 1.2/9T, 3.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-8T Front Shock Spring Grey (44mm, 1.2/8T, 3.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-7.5T Front Shock Spring Blue (44mm, 1.2/7.5T, 3.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-7T Front Shock Spring Yellow (44mm, 1.2/7T, 4.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-6.5T Front Shock Spring Red (44mm, 1.2/6.5T, 4.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-6T Front Shock Spring Orange (44mm, 1.2/6T, 5.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850FSET Front Shock Spring Set (44mm, 3.6/3.9/4.3/4.6/5.1 lb/in, 12/13mm Shock) AE (5 Pairs) KOS04851-10.5T Rear Shock Spring Green (61mm, 1.1/10.5T, 1.8 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-10T Rear Shock Spring White (61mm, 1.1/10T, 1.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-9.5T Rear Shock Spring Grey (61mm, 1.1/9.5T, 2.0 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-8.5T Rear Shock Spring Yellow (61mm, 1.1/8.5T, 2.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851RSET Rear Shock Spring Set (61mm, 1.8/1.9/2.0/2.3 lb/in, 12/13mm Shock) AE (4 Pairs) Alum Shock Body Gold / Hard Coated Black for 12mm Shock (2) fine KOS04801-34 34mm Front Alum Shock Body Hard Coated Black for 12mm Shock (2)KOS04801-34GD 34mm Front Alum Shock Body Gold for 12mm Shock (2) KOS04801-41 41mm Rear Alum Shock Body Hard Coated Black for 12mm Shock (2)KOS04801-41GD 41mm Rear Alum Shock Body Gold for 12mm Shock (2) INTRODUCTION SPECIFICATION Features:*Big bore shock body for 12mm pistons*Gold color or hard coated black color aluminum shock bodies for long lifetime*Polished inner shock body for slick & friction free performance*Fits Koswork 12mm shock set *Made In Taiwan *Cars, parts, accessories & others are not included.* Alum Shock Cap for 12mm Shock Black (2) for Koswork & Tamiya precise KOS04803 INTRODUCTION SPECIFICATION Features: *Aluminum shock caps allow the utmost durability and consistency*Fits Tamiya 54504 / 54505 Buggy Big Bore Aeration Damper Front/ Rear*Fits Koswork 12mm Shock Sets*Top opening 5mm, fits 5mm bushings & balls *Made In Taiwan *Cars, parts, accessories & others are not included.* 5mm Shock Cap Bushing for 12mm Shock (4) Black for Koswork, Kyosho & Tamiya lightweight KOS04804 INTRODUCTION SPECIFICATION Features: *5mm Black color Delrin shock cap bushing*Lightweight & precise*Ball shape design for smooth shock operation*Work with Kyosho, Tamiya, Yokomo & other cars with 5mm shock cap holes or general 5mm holes*Perfect with Koswork 12mm shock sets*Length 9.5mm, ball size 5mm**Please don’t overtighten or squeeze the parts.** *Made In Taiwan *Cars, tools & parts not included.* Alum Shock Spring Retainer/Cup for 12mm Shock (2) professional KOS04805BK Black Long 13.2/6.5mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)KOS04805GD Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)KOS04805TA Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2) KOS04846BK Black Short 11.2/4.5mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)KOS04846GD Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)KOS04846TA Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2) INTRODUCTION SPECIFICATION Features: *Aluminum shock spring retainers/cups provide a solid foundation for the shock springs*Fits Koswork 12mm shock sets *Made In Taiwan *Cars, parts, accessories & others are not included.* O-Ring 12x1mm for Shock Cap 12mm Shock (4) KOS04806 INTRODUCTION SPECIFICATION Features: *Prevent leaking*Fits Koswork, Associated, Xray, etc Compatibility: AssociatedTC7-FTF6-FT XRAYRX8 OriginalXB2 2017 CarpetXB2 2018 CarpetXB2 2019 CarpetXB2 2019 DirtXB2 2020 CarpetXB2 2020 DirtXB2 2021 CarpetXB2 2021 DirtXB2 DirtXB2 OriginalXB4 2016XB4 2017XB4 2018XB4 2019XB4 2020XB4 2021 CarpetXB4 2021 DirtXB4 2WDXB4 OriginalXT2 2021 CarpetXT2 OriginalXT4 *Made In Taiwan *Cars, parts, accessories & others are not included.* Shock Spacer & Hat bushing Set for 12mm & 13mm Shock (for 4) AE KOS04807 INTRODUCTION SPECIFICATION Features: *Plastic bushings needed to rebuild four shocks*Fits Koswork 12mm & 13mm Shock Sets CompatibilityAssociatedRC10B6.4RC10B6.4DRC10B7RC10B74.2RC10B74.2DRC10B7DRC10SC6.4RC10T6.4B44.3DR10DR10MPro2 DK10SWPro2 LT10SWPro2 RT10SWPro2 SC10ProSC10RB10RC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B64RC10B64 Club RacerRC10B64DRC10B6DRC10B74RC10B74.1RC10B74.1DRC10SC5MRC10SC6.1RC10SC6.2RC10T5MRC10T6.1RC10T6.2Reflex DB10SR10SR10M Dirt OvalTrophy Rat *Made In Taiwan *Cars, parts, accessories & others are not included.* Lower Shock Cap (2) 12mm & 13mm Shock AE Bling KOS04808BK Lower Shock Cap Black (2) 12mm & 13mm Shock AEKOS04808GD Lower Shock Cap Gold (2) 12mm & 13mm Shock AEKOS04808TA Lower Shock Cap Blue (2) 12mm & 13mm Shock AE INTRODUCTION SPECIFICATION Features: *Aluminum bottom caps with knurled portion for increased grip*Aluminum lightweight & durable construction*Available in black, blue or gold anodized colors*Fits Koswork & Associated 12 & 13mm shock sets Compatibility:AssociatedB44.3DR10DR10MPro2 DK10SWPro2 LT10SWPro2 RT10SWRB10RC10B4.2RC10B44.2RC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B6.4RC10B6.4DRC10B64RC10B64 Club RacerRC10B64DRC10B6DRC10B7RC10B74RC10B74.1RC10B74.1DRC10B74.2RC10B74.2DRC10B7DRC10F6RC10SC5MRC10SC6.1RC10SC6.2RC10SC6.4RC10T4.2RC10T4.3RC10T5MRC10T6.1RC10T6.2RC10T6.4Reflex DB10SC10.2SC10.3 JRTSC10.3 Lucas OilSR10SR10M Dirt OvalTC6TC6.2TC7Trophy Rat *Made In Taiwan *Cars, parts, accessories & others are not included.* O-Ring 14x1mm for Threaded Collar 12mm Shock AE Tamiya (4) KOS04811 INTRODUCTION SPECIFICATION Features: *Keep the ring in place*Fits Koswork, Associated, Tamiya etc Compatibility: Fits Tamiya 54504 / 54505 Buggy Big Bore Aeration Damper Front/ Rear AssociatedB44B44.3DR10DR10MPro2 DK10SWPro2 LT10SWPro2 RT10SWRB10RC10B4RC10B4.1RC10B4.2RC10B44.1RC10B44.2RC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B64RC10B64 Club RacerRC10B64DRC10B6DRC10B74RC10B74.1RC10B74.1DRC10SC5MRC10SC6.1RC10SC6.2RC10T4RC10T4.1RC10T4.2RC10T4.3RC10T5MRC10T6.1RC10T6.2SC10SC10.2SC10.3 JRTSC10.3 Lucas OilSC10B *Made In Taiwan *Cars, parts, accessories & others are not included.* Threaded Collar w/O-rings for 12mm Shock AE Tamiya (2) Bling KOS04812BK Threaded Collar w/O-rings Black for 12mm Shock AE Tamiya (2)KOS04812GD Threaded Collar w/O-rings Gold for 12mm Shock AE (2)KOS04812TA Threaded Collar w/O-rings Blue for 12mm Shock AE (2) INTRODUCTION SPECIFICATION Features: *Aluminum lightweight & durable construction*Knurled portion for increased grip*Available in black, blue or gold anodized colors*Fits Koswork, Associated & Tamiya 12mm shock sets Compatibility:Fits Tamiya 54504 / 54505 Buggy Big Bore Aeration Damper Front/ Rear AssociatedB44B44.3DR10DR10MPro2 DK10SWPro2 LT10SWPro2 RT10SWRB10RC10B4RC10B4.1RC10B4.2RC10B44.1RC10B44.2RC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B64RC10B64 Club RacerRC10B64DRC10B6DRC10B74RC10B74.1RC10B74.1DRC10SC5MRC10SC6.1RC10SC6.2RC10T4RC10T4.1RC10T4.2RC10T4.3RC10T5MRC10T6.1RC10T6.2SC10SC10.2SC10.3 JRTSC10.3 Lucas OilSC10B *Made In Taiwan *Cars, parts, accessories & others are not included.* Shock Shaft TiN Coated (2) 12mm & 13mm Shock AE tough KOS04821 Front Shock Shaft TiN Coated 3×41.25mm (2) 12mm & 13mm Shock AE 21mmKOS04826 Rear Shock Shaft TiN Coated 3×47.75mm (2) 12mm & 13mm Shock AE 27.5mm INTRODUCTION SPECIFICATION Features: *Ti-Nitride coating shock shafts for long life and smooth action*Fits Koswork & Associated 12 & 13mm shock sets CompatibilityAssociatedB44.3DR10MRC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B6.4RC10B6.4DRC10B6DRC10B7/B7D *Made In Taiwan *Cars, parts, accessories & others are not included.* Shock Piston, for 12mm shock AE (2) KOS04831-215 2×1.5mmKOS04831-216 2×1.6mmKOS04831-217 2×1.7mm INTRODUCTION SPECIFICATION Features: *Precisely Machined from self-lubricating delrin material*CNC tuning for the best performance*Easier to fine-tune suspension characteristics based on needs*Fits Koswork & Associated 12mm shock sets CompatibilityAssociatedB44B44.3GT2ProRallyRC10RC10 ClassicRC10 World’s CarRC10B2RC10B3RC10B4RC10B4.1RC10B4.2RC10B44.1RC10B44.2RC10B5RC10B5MRC10B6RC10B6 Club RacerRC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B6DRC10B74RC10B74.1RC10B74.1DRC10CCRC10GTRC10SC5MRC10SC6.1RC10SC6.2RC10T2RC10T3RC10T4RC10T4.1RC10T4.2RC10T4.3RC10T5MRC10T6.1RC10T6.2SC10SC10.2SC10.3 JRTSC10.3 Lucas OilSC10BSC10GT *Made In Taiwan *Cars, parts, accessories & others are not included.* Shock Ball End / Eyelet (for 5.8mm ball) (4) Tamiya Kyosho KOS04841-6 Shock Ball End / Eyelet (for 5.8mm ball) 13.4mm (4) Tamiya KyoshoKOS04841-7 Shock Ball End / Eyelet (for 5.8mm ball) 15.9mm (4) Tamiya Kyosho INTRODUCTION SPECIFICATION Features: *Hard plastic ball ends*Fits Koswork 12mm shock sets, Kyosho & Tamiya 5.8mm balls *Made In Taiwan *Cars, parts, accessories & others are not included.* 44mm/61mm Shock Spring (ID 16.4mm, 12/13mm Shock) AE (2) fine tuning KOS04850-9T Front Shock Spring Green (44mm, 1.2/9T, 3.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-8.5T Front Shock Spring White (44mm, 1.2/8.5T, 3.4 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-8T Front Shock Spring Grey (44mm, 1.2/8T, 3.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-7.5T Front Shock Spring Blue (44mm, 1.2/7.5T, 3.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-7T Front Shock Spring Yellow (44mm, 1.2/7T, 4.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-6.5T Front Shock Spring Red (44mm, 1.2/6.5T, 4.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850-6T Front Shock Spring Orange (44mm, 1.2/6T, 5.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04850FSET Front Shock Spring Set (44mm, 3.6/3.9/4.3/4.6/5.1 lb/in, 12/13mm Shock) AE (5 Pairs) KOS04851-10.5T Rear Shock Spring Green (61mm, 1.1/10.5T, 1.8 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-10T Rear Shock Spring White (61mm, 1.1/10T, 1.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-9.5T Rear Shock Spring Grey (61mm, 1.1/9.5T, 2.0 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-9T Rear Shock Spring Blue (61mm, 1.1/9T, 2.2 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851-8.5T Rear Shock Spring Yellow (61mm, 1.1/8.5T, 2.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)KOS04851RSET Rear Shock Spring Set (61mm, 1.8/1.9/2.0/2.3 lb/in, 12/13mm Shock) AE (4 Pairs) INTRODUCTION SPECIFICATION Features: *Fine tuning*Improved traction & bump handling*Consistent performance*Color marked for easy identification*The less the coils, the harder the spring*The higher the spring rate, the harder the spring*Fits Koswork 12mm shock sets & Associated 12mm shocks*Also fits 13mm shock sets, but a little bit tight CompatibilityAssociatedDR10MRB10RC10B6.1RC10B6.1DRC10B6.1DLRC10B6.2RC10B6.2DRC10B6.3RC10B6.3DRC10B64RC10B64 Club RacerRC10B64DRC10B74RC10B74.1RC10B74.1DRC10SC6.1RC10T6.1SR10SR10M Dirt Oval *Made In Taiwan *Cars, parts, accessories & others are not included.* **Above items are sold separately. If there is any inquiry or concern, feel free to ask before purchase, thanks.**
