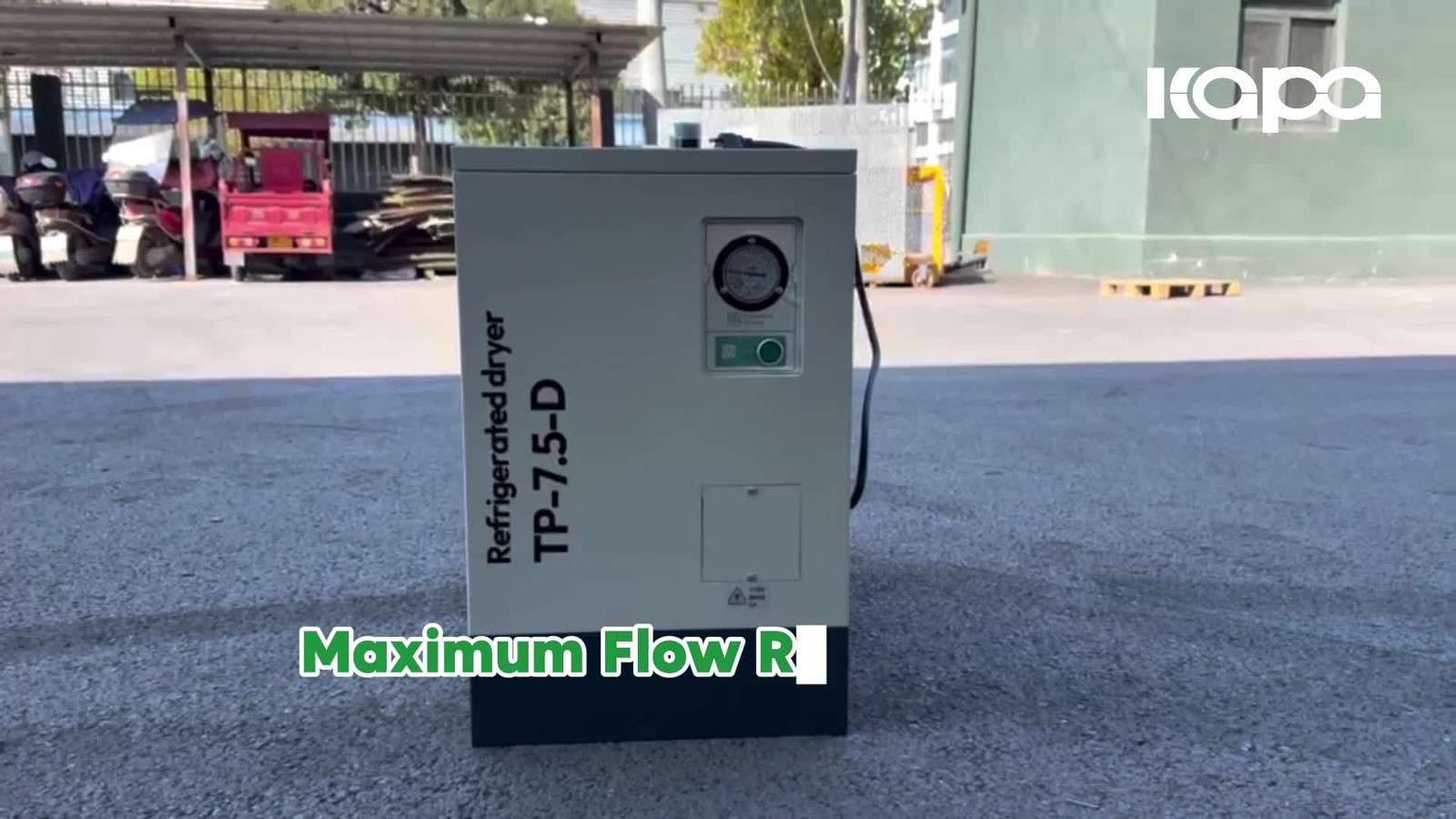

Compressed Refrigerated Air Dryer For 10Hp Air Compressor 110V/60Hz 1PH 53 CFM
$ 522.72
Description
Compressed Refrigerated Air Dryer For 10Hp Air Compressor 110V/60Hz 1PH 53 CFM Model : TP-7.5-D Air Capacity : 53 CFM Installed power : 330 W Interface size ：1" Electrical : 1 Phase Working Operating pressure : 102-145PSI Cooling : By Air Ambient temperature : 0-95℉ Intake air temperature : ≤113℉ Power supply : 110V/60Hz Refrigerant type : R134a Dimension : 26*16*28 Inch Weight : 84 lb Warranty : 1 Year Product Advantages : 1: Space saving: Help users save space when installation space is insufficient. 2: Cost saving: The integrated design of dryer and filter saves time and manual installation, and reduces maintenance costs. 3: In response to the international Montreal Protocol, this series of models all use R134a environmentally friendly refrigerants, which have zero damage to the atmosphere and meet the needs of the international market. 4: The aluminum alloy three-in-one heat exchanger design minimizes the process loss of cooling capacity and improves the recycling of cooling capacity. Under the same processing capacity, the total input power of this model is reduced by 15-30%. 5: The integrated heat exchanger has guide fins added to make the compressed air evenly exchange heat inside, and the built-in air-water separation device is equipped with a stainless steel filter to make the water separation more thorough. 6: Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording of cumulative operating time, self-diagnosis function, display of corresponding alarm codes, and automatic protection of equipment. 7: Standard constant pressure expansion valve and intelligent temperature control. Laboratory tests show that the machine can still operate stably when the air intake temperature reaches 65℃ and the ambient temperature reaches 42℃. It also has dual antifreeze protection of temperature and pressure. When the machine runs at low load for a long time, it will automatically stop the output of the compressor and use the refrigeration capacity stored in the aluminum plate to provide heat exchange. This saves energy and extends the service life of the equipment.
