Bluetooth Fingerprint Keypad Touch Waterproof Keyless Entry Door Lock System
$ 18.24
Description

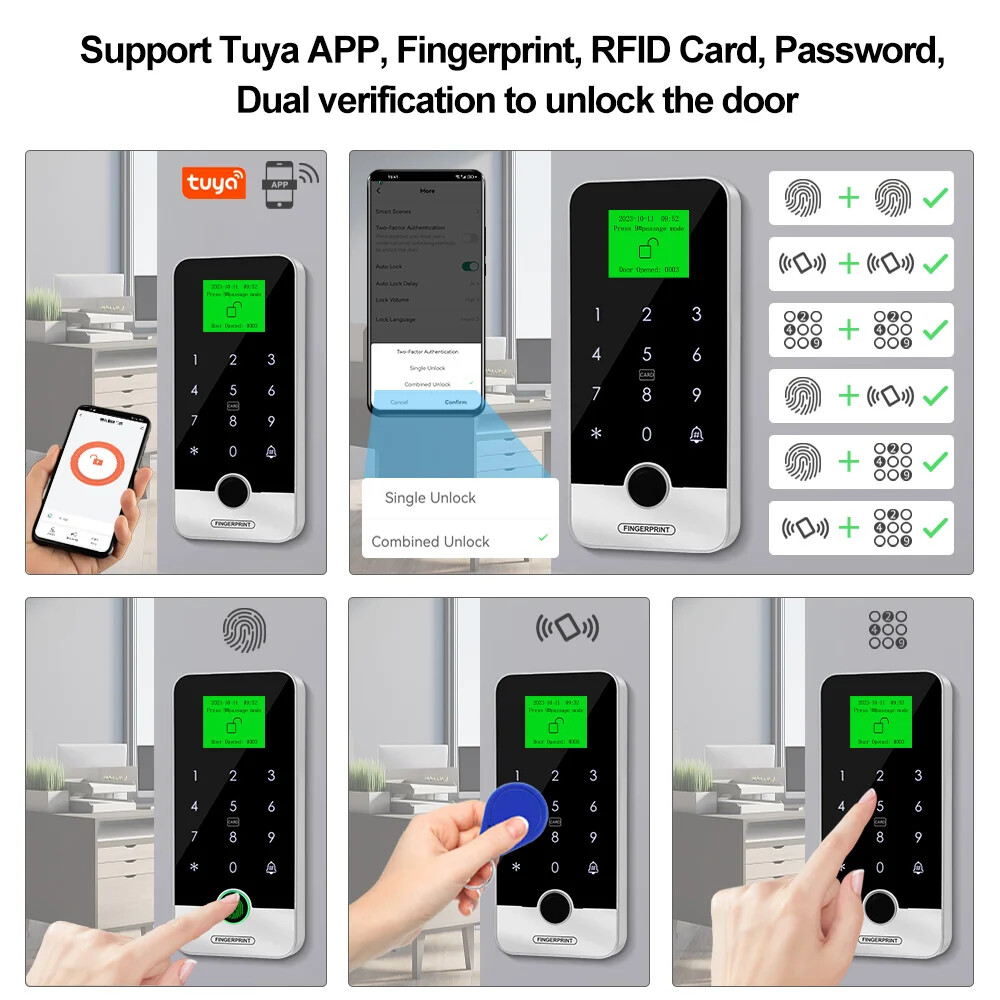

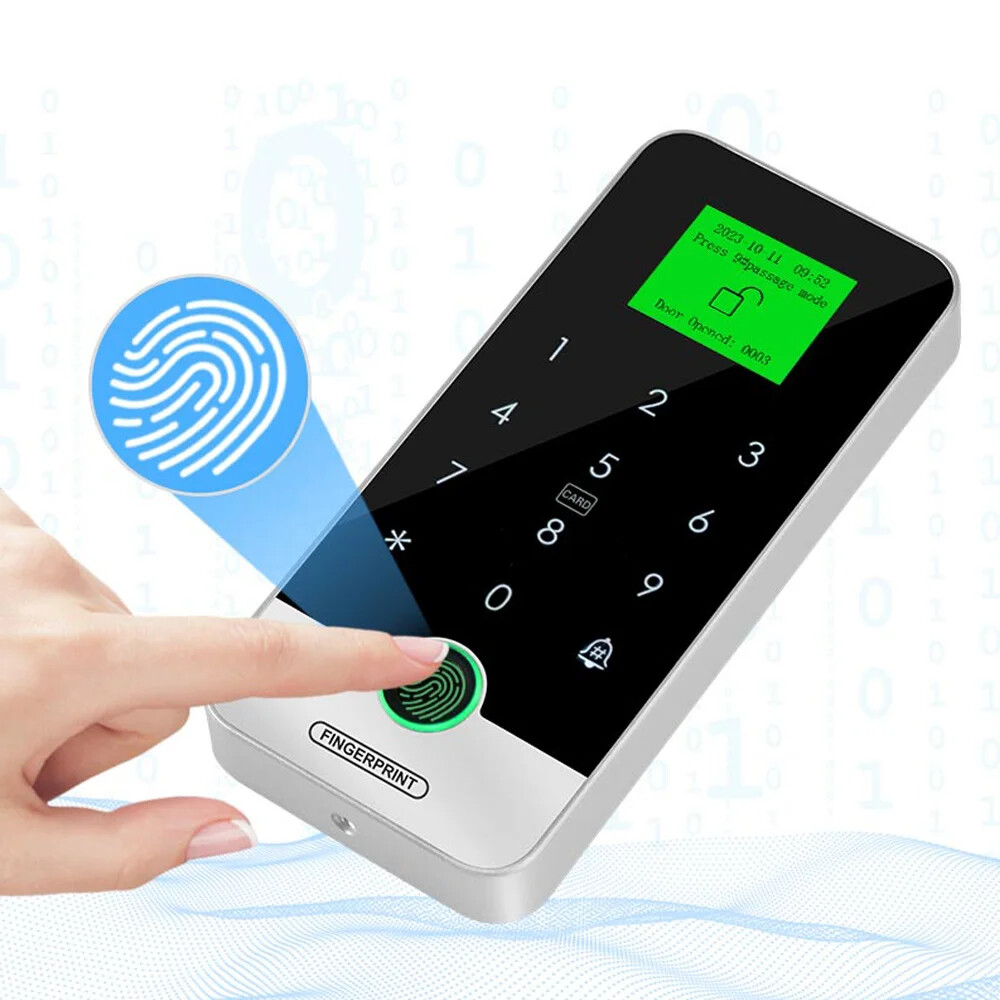

Bluetooth Tuya APP Smart Fingerprint RFID Access Control Keypad Touch IP65 Waterproof 13.56MHz Door Opener Keyless Lock System WG26 Product Specification: Material: high quality ABS plastic Working voltage: DC 12V Working current: 500mA Fingerprint capacity: 300 Card capacity: 1000 Password capacity: 1000 Panel: touch screen panel Working frequency: 13.56MHz Card reading type: support MF 1K compatible card Card reading distance: 0-5CM ldentification method: Fingerprint, RFID Card, Password, Tuya APP. Record capacity: Mobile phone APP remotely view the latest door opening information. Backlight: has white backlight Waterproof function: IP65 Doorbell button: support wired doorbell Display Language (S300X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian. Working temperature: -20。C ~ 50。C Working Humidity: 20% ~ 90% Product size of S300A: 132*75*18mm Product size of S300X: 163*75*18mm Product Details: 1.8inch Color TFT Screen, Easy to program with the display. Display supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian language Time and date show on display when standby(S300X model) 360 degree comprehensive fingerprint recognition, fast identify speed For different angles of fingerprints, it can be quickly and accurately identified IP65 Waterproof. Can be installed outdoor. Has a door bell button, can install a wired door bell. White backlight keypad. The digits number can be seen clearly even at dark. Can set Normally Open model Frequent entry and exit can be set to normally open model Support Fingerprint, RFID Card, Password, Tuya APP, dual verification to unlock the door Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity, Mobile phone APP remotely view the latest opening information, more secure! Support Tuya APP remote unlocking Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP About Tuya APP 1) Supports language: Chinese, English. 2) Can add fingerprints, password, RFID cards on the APP, it's very convenient. 3) Can unlock the door with Tuya APP unlocking button, or Tuya password. 4) Can view unlock records. Click reminder information to view logs. 5) Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP. Tuya APP Setting Instruction 1) Scan QR code, or Search "Tuya" on App store to download it. 2) Turn on Tuya APP to add new equipment. 3) Trun on bluetooth, Select "Auto scan", click "Searching". 4) Connect with available devices, click "Next". 5) Connecting, Added successfully, click "Done". 6) Click setting, turn on "remote unlock setting". 7) Select user, click "+" to add user, fill in name, click next step. 8) Add user fingerprints, Code, Cards. 9) Add ordinary user by clicking ordinary member “+”. 10) Add code user by Time-Limited: input phone number, set effective time and ineffective time, click "Send". 11) Add temporary code: click "One-Time'", input phone number, click "Send". (Notice: The code valid time for 1 hours and only can be used once.) Easy installation and operation Based on advanced technology, fast recognition speed, high sensitivity. S300X Model, with 1.8inch display screen. S300A model, without display screen (other function is same with S300X model) RFID Keyfobs: Material: ABS Operating frequency: 13.56MHz Detection range: 0-5cm Each card pre programmed and has a metal keyring. Wiring Diagram (The power supply, electric locks, door exit button are not included in the package, need to purchase extra.)
