ASCO Red-Hat II EF8320G178 3-way, 2 pos Pilot-Operated Solenoid 1/4" Valve NOS
$ 36.96
Description

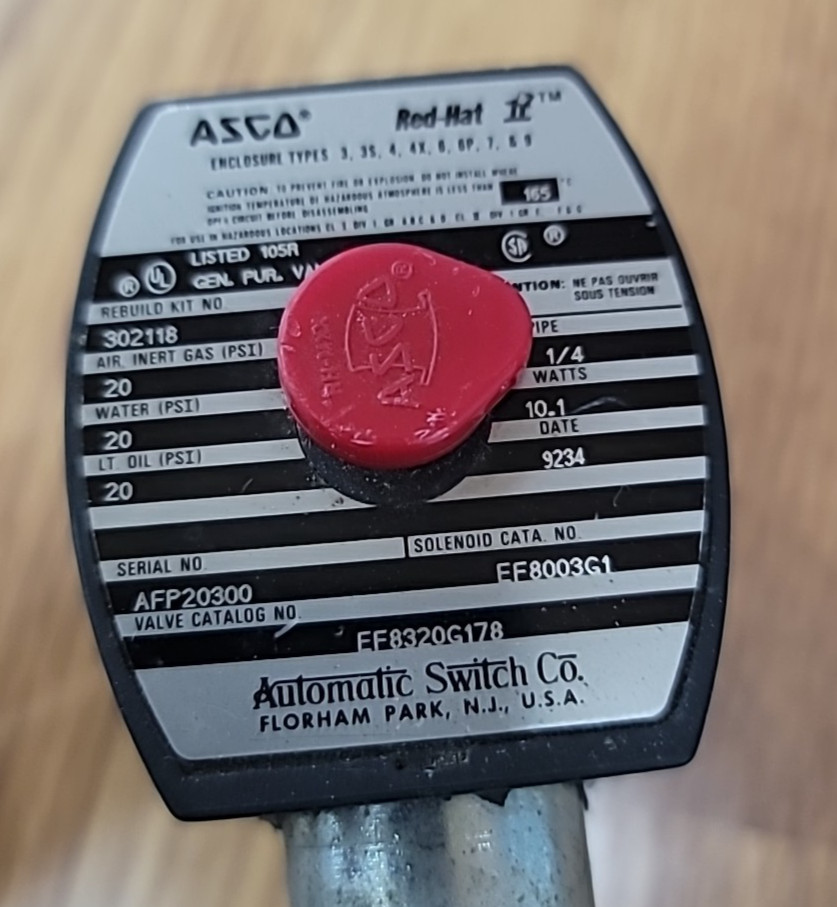

ASCO Red-Hat II EF8320G178 3-way, 2 pos Pilot-Operated Solenoid 1/4" Valve NOS. The ASCO EF8320G178 is a. EF8320G178 (EF prefix denotes Explosion-proof). Key Specifications & Features This valve is commonly used in hazardous locations, providing a rugged solution for industrial applications. ASCO Red-Hat II EF8320G178 3-way Pilot-Operated Solenoid 1/4" Valve NOS This unit is New Old Stock from a retail location no longer in business. Does not come with packaging. Details below. The ASCO EF8320G178 is a 3-way/2-position, 1/4-inch NPT, direct-acting solenoid valve featuring a brass body, NBR seals, and an explosion-proof/watertight enclosure (NEMA 3, 3S, 4, 4X, 6, 6P, 7, 9). It is part of the RedHat series, designed for 120/60 or 110/50 VAC, controlling air, inert gas, or light oil with a 0.35 Cv flow factor. Key Specifications & Features: Model: EF8320G178 (EF prefix denotes Explosion-proof) Operation: 3-Way Universal (Normally Closed or Open) Body Material: Brass Pipe Size: 1/4" NPT Voltage: 120/60 VAC, 110/50 VAC Pressure Rating: 0 to 20 PSI (Air/Water/Light Oil) Temperature Range: 32∘F32 raised to the composed with power F 32∘F to 125∘F125 raised to the composed with power F 125∘F (Ambient) Certifications: UL/CSA Wattage: 10.1 W This valve is commonly used in hazardous locations, providing a rugged solution for industrial applications. It is designed to be mounted in any position.
